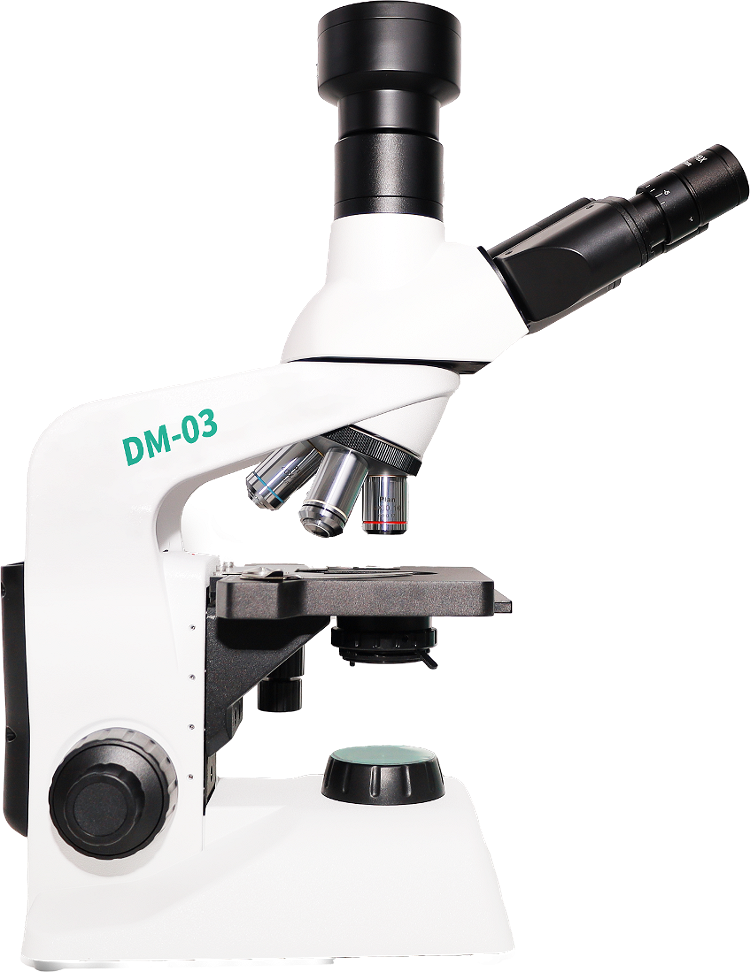

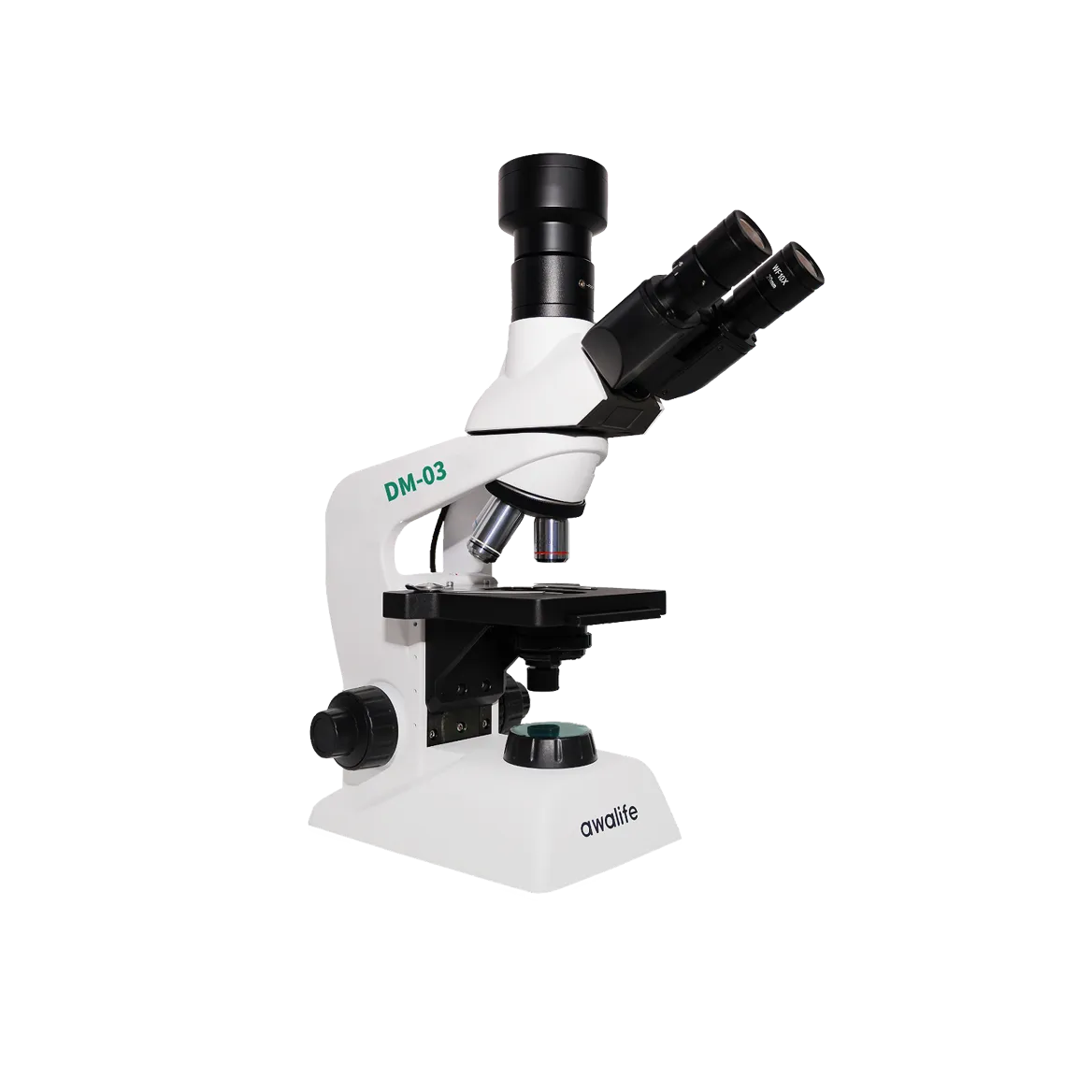

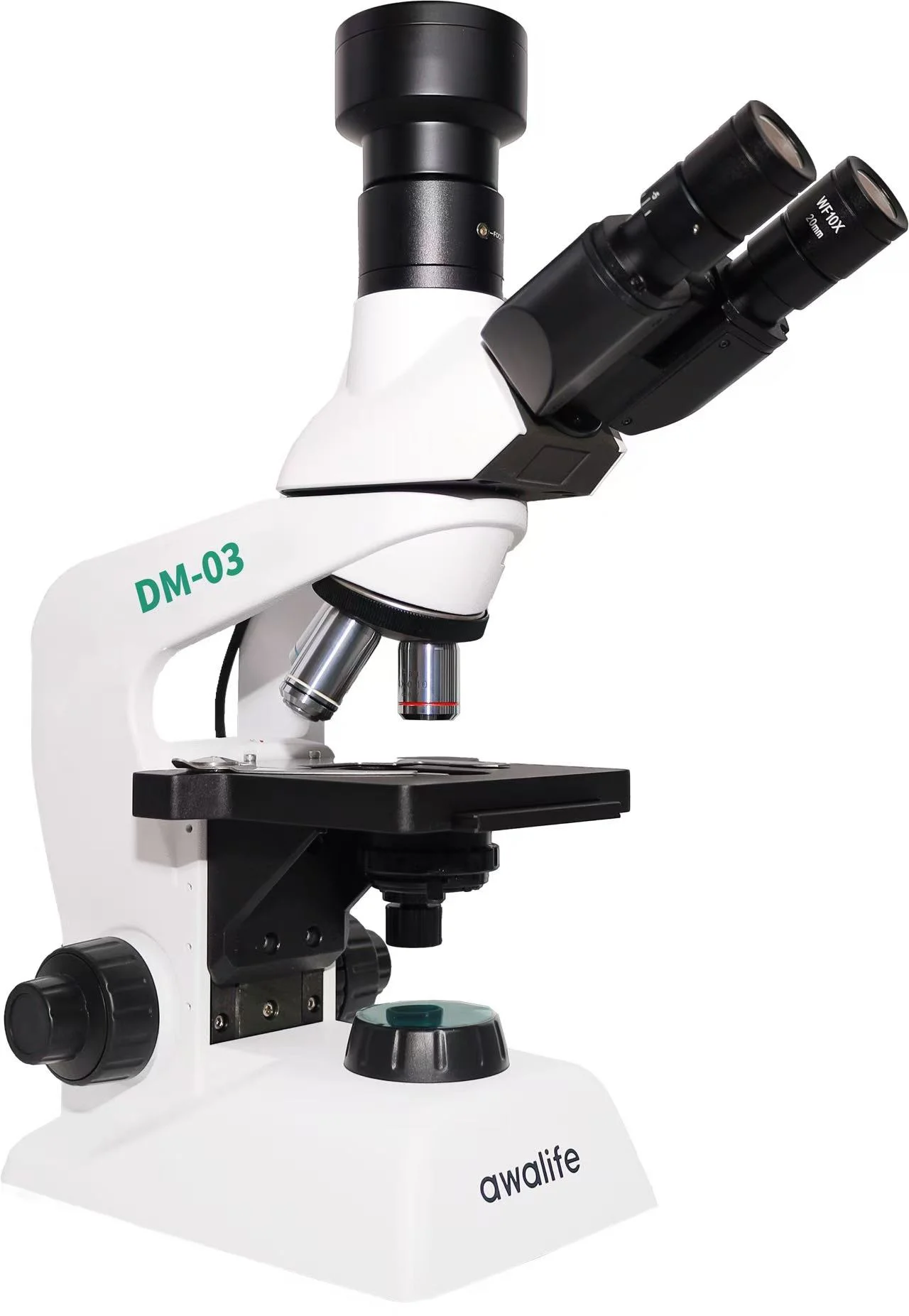

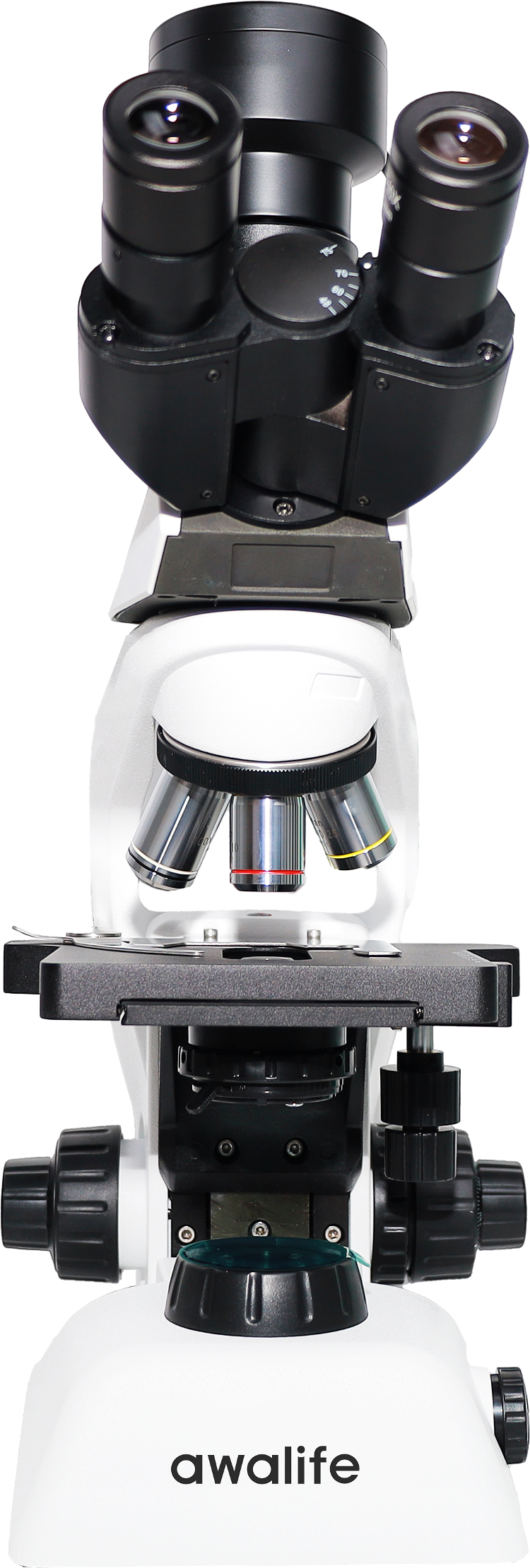

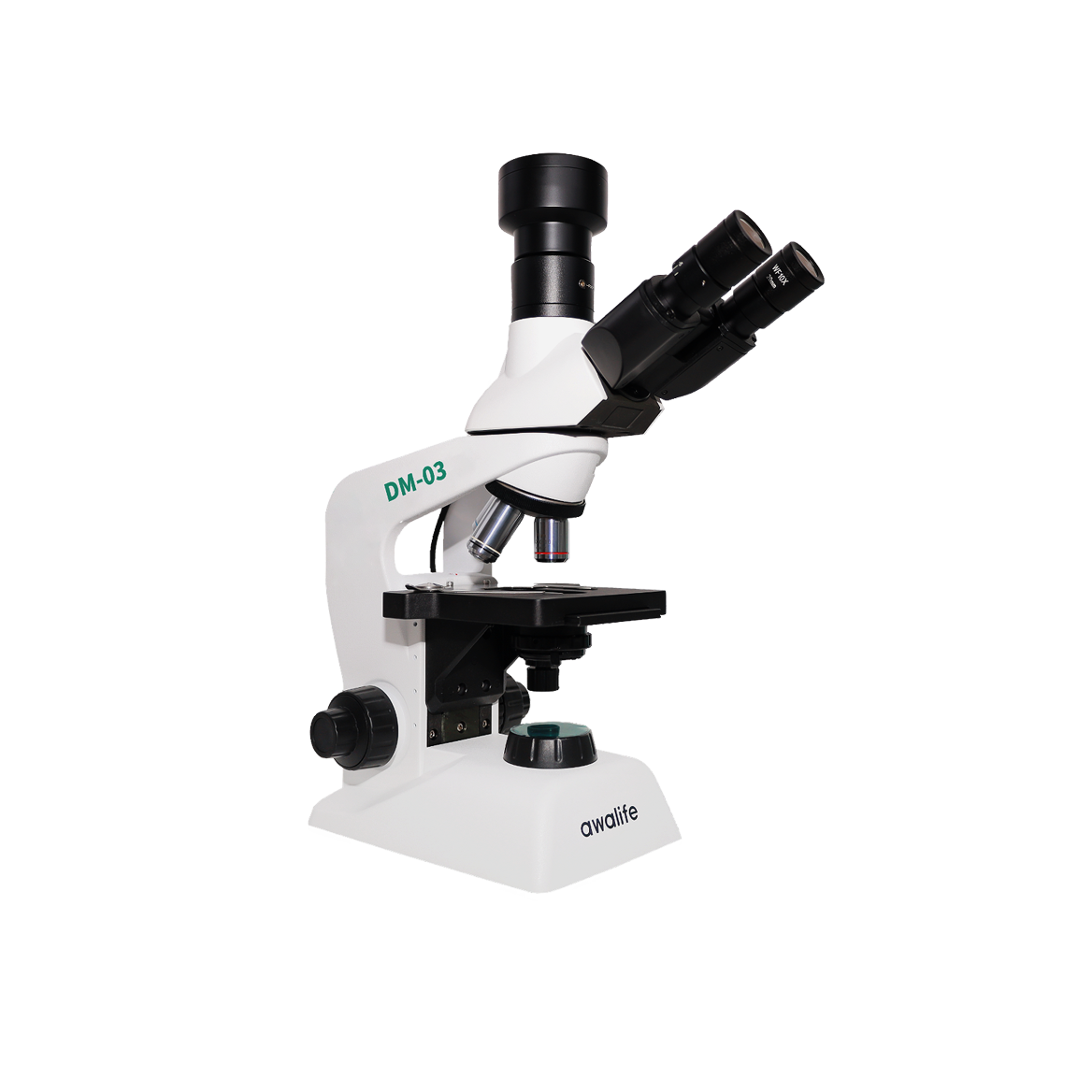

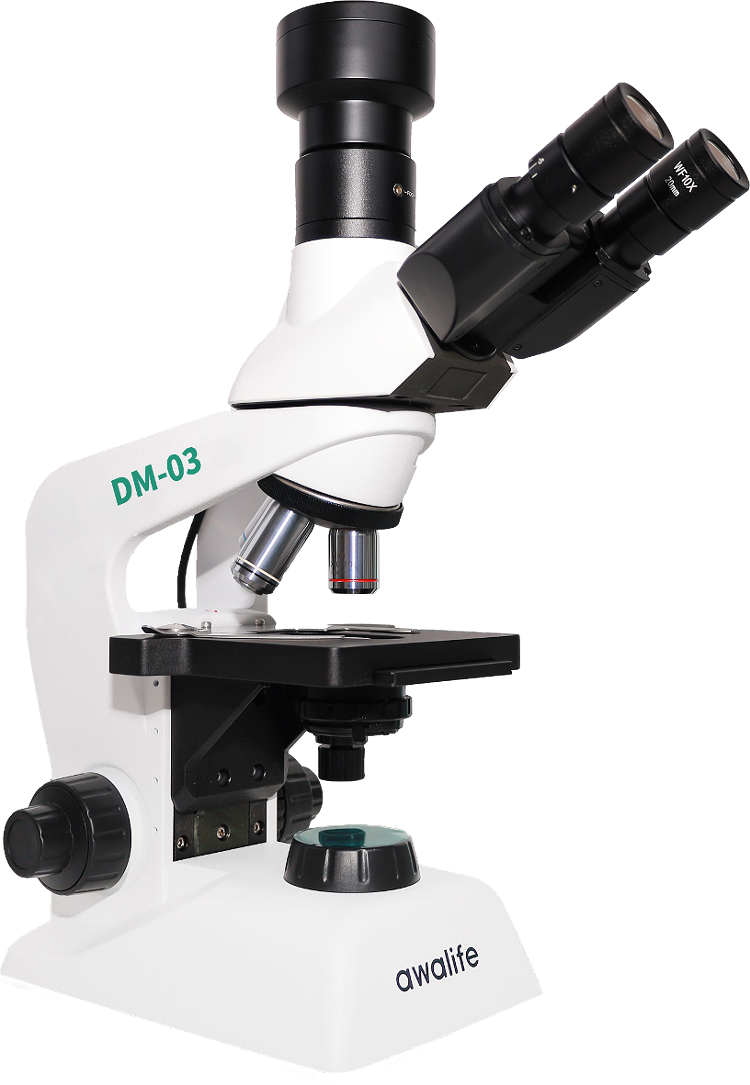

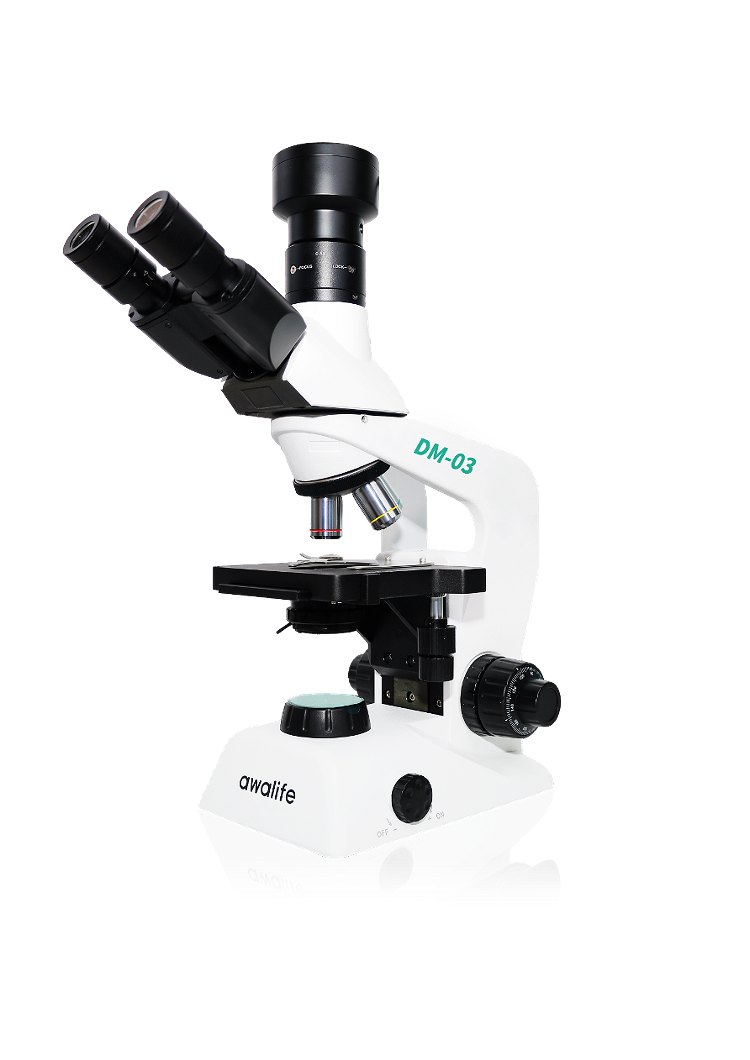

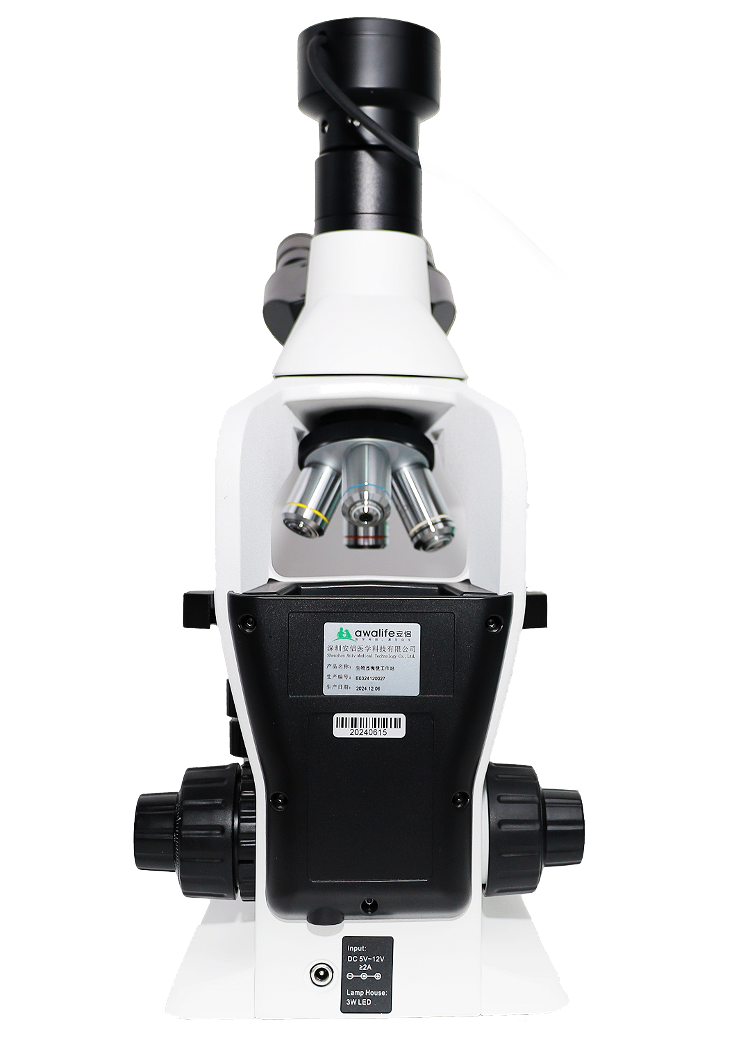

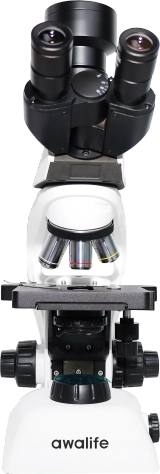

Awalife Microscope Workstation is more than a standard veterinary microscope—it brings imaging, measurement, cell counting, and documentation into one streamlined workflow. With built-in software to add scale bars, annotate findings, and generate a report in one click, it helps clinics capture consistent results with less manual effort.
| Optical System | Infinity optical system |
| Magnification Range | 40× — 1000× |
| Illumination | 3W LED cool light source |
| Viewing Head | Hinged trinocular tube |
| Eyepiece | Wide-field high eyepoint WF10×/φ20mm |
| Objectives | Infinity Plan Achromatic Objective Set ① 4×/0.10; ② 10×/0.25; ③ 40×/0.65(S); ④ 100×/1.25 (S,Oil) |
| Revolving Nosepiece | Inward-facing 4-hole nosepiece |
| Condenser | Abbe condenser N.A. 1.25 with adjustable diaphragm, 12mm travel |
| Stage | Large steel-wire platform (140×135mm), movement range 76mm×52mm |
| Power Supply | 5V 2A low-power adapter |
| Dimensions | 201×388×490mm |
| Weight | 7.1kg |
Awalife High-Performance Microscope: See the Micro World with Precision
See Every Detail, Capture Every Moment
High-performance Hardware
Infinity Optical System
It delivers clear, high-quality imaging with minimal chromatic aberration, ensuring accurate and detailed observation.
High-Brightness LED Light Source
It provides a uniform cold light illumination, ensuring clear visibility while offering an extended lifespan.

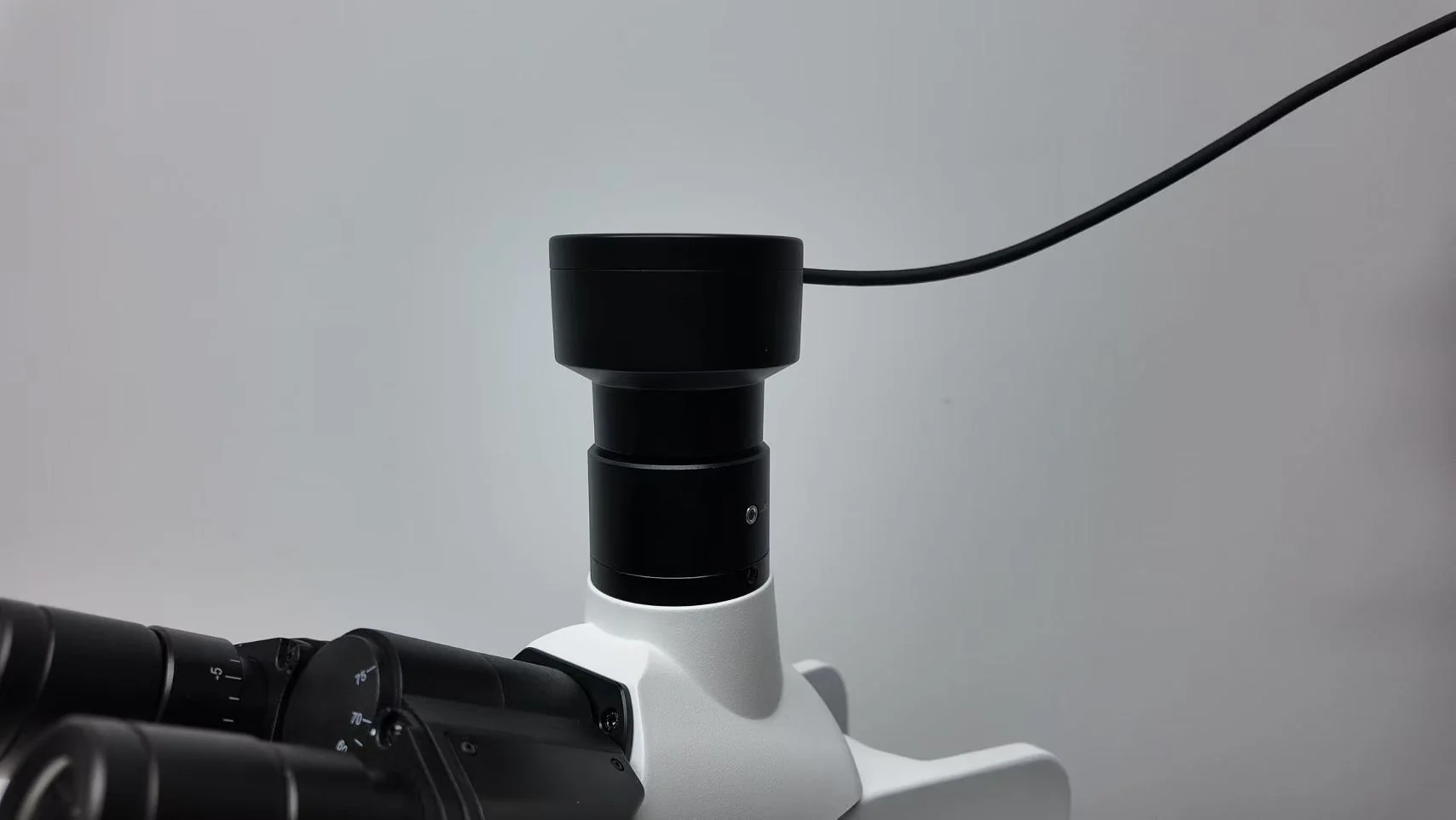

4K HD Camera
It delivers ultra-high-definition imaging and supports efficient digital management for precise observation and record-keeping.
Swivel Eyepiece Tube
It provides comfortable viewing, helping to reduce eye strain during extended use.
Already Have a Microscope? Upgrade it with Awalife Microscope Image Hub.
Keep your Leica or Olympus microscope and unlock the same Awalife software workflow—capture, measure, annotate, count, and report on a PC.
- Compatible with Leica and Olympus microscopes (models as applicable)
- Plug-and-play connection to PC
- Unlock user friendly software: capture, measure, annotate, count, report
- Standardize documentation across users and sites
- Built-in teaching image library for onboarding
FAQS
Yes. If you have an infinity optical microscope, the camera module can be customized and supplied separately.
Yes. DM-03 Microscope Workstation supports personalized uploads of reference images, videos, and SOPs.
Faster documentation, automated reports, a built-in reference library (542+ canine/feline images), SOP support, and improved communication, training, and collaboration.
Cell counting, multi-shape annotation, real-time measurement with a digital scale, customizable templates, and multi-account management.
DM-03 Microscope Workstation is a microscope workstation equipped with a 4K camera and an intelligent system for one-click capture, reporting, annotation, counting, and measurement.
